Crucial BX500 SSD Data Recovery

At Zero Alpha Data Recovery, we offer professional data recovery for Crucial BX500 SSDs. These budget-friendly drives are common in many laptops and desktops but are also known for sudden failures and performance drops. If your BX500 has stopped working or is no longer detected, we can help. We also accept mail-in jobs Australia-wide, making the process easy no matter where you're located.

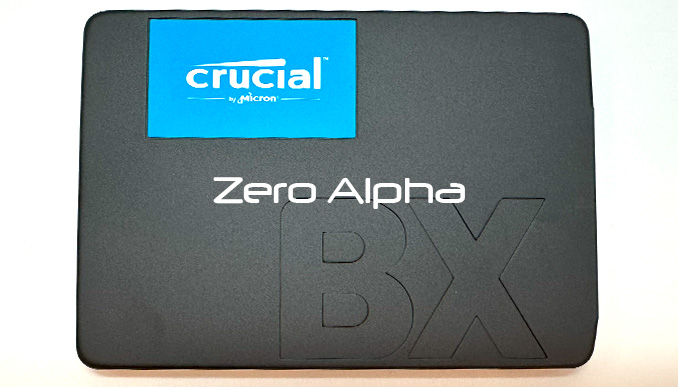

crucial ssd by micron data recovery

Crucial BX500 SSD Common Problems

  • SSD not detected in BIOS or Windows

  • Sudden loss of files or complete data disappearance

  • Freezing or extremely slow performance

  • Drive shows as 0MB or unallocated

  • Firmware or controller failure

  • Read-only mode triggered after error events

  • Boot loop or system crashes

  • Power surge damage

  • Data corruption after firmware update

  • Partition becomes RAW or unreadable

Crucial BX500 CT200BX500SSD1 2TB Data Recovery Caselog

At Zero Alpha Data Recovery, we shed light on the intricate task of recovering data from a Crucial BX500 SSD that suffered from a corrupted file system on a Mac platform. File system corruption on a Mac occurs when the hierarchical structure that organizes and manages data becomes compromised. This can result from various factors such as sudden power outages, improper shutdowns, or even inherent software glitches. In the case of the Crucial BX500 SSD, file system corruption can lead to a cascade of issues, making data retrieval a challenging endeavor.

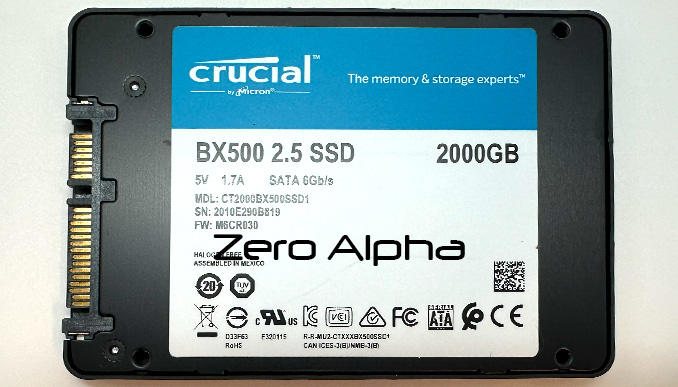

crucial ssd bx500 2tb CT200BX500SSD1 data recovery

CT1000BX500SSD1 Data Recovery Case Log

05Aug25: No ATA registers. Thermals OK. Ripped pads at SATA connector. 3 of the 4 data signals are disconnected. Cut trace to remaining signal and soldered magnet wire between coupling capacitors and connector legs. Imaged all client data at 100+MB/s. Controller: Silicon Motion SM2259XT2G AA.



Crucial BX500 240GB CT240BX500SSD1 Data Recovery Caselog

13Nov25: This ssd was brought in for data recovery at Sydney NSW. The customer was quoted a very high price so they brought it to Zero Alpha for the lowest ssd data recovery prices. Unfortunately, it was taken to a repair shop in Chatswood where all the surface-mount chips were damaged. This job does not qualify for our standard low data-recovery pricing due to the extreme complexities caused by unqualified work. Controller: SM2258XT G AB.
